Name: 8-Directional Adjustable Reflective Traffic Sign with Engineering-Grade Film and Lightweight Aluminum Construction
Brand: Shanghai Riminghuan Trading Company Limited
SKU: Tanda yang dapat diputar ulang
Price: 104.00 USD
Availability: InStock

Rumah > Produk > Rambu Lalu Lintas Reflektif >

8-Directional Adjustable Reflective Traffic Sign with Engineering-Grade Film and Lightweight Aluminum Construction

8-directional reflective traffic sign

engineering-grade film traffic sign

lightweight aluminum traffic sign

Tempat asal:

Cina

Nama merek:

RMHs

Nomor model:

Tanda yang dapat diputar ulang

Hubungi kami

Permintaan Penawaran

8-Directional Adjustable Reflective Traffic Sign with Engineering-Grade Film and Lightweight Aluminum Construction

Rincian Produk

Bahan:

Aluminium

Pengukuran:

dapat disesuaikan

Arah:

dapat disesuaikan

berat:

3KG tanpa alas

Lingkup aplikasi:

Di mana panah diperlukan

Warna:

Merah/biru

Gunakan Metode:

Regulasi manual

Fungsi:

Dapat menunjukkan 8 arah

Ketentuan Pembayaran & Pengiriman

Kemasan rincian

Kemasan karton 3600pcs wadah 40 inci

Syarat-syarat pembayaran

L/C,T/T

Menyediakan kemampuan

2000PCS per 1 bulan

Produk-produk terkait

3M Film Multidirectional Reflektif Rambu Lalu Lintas Arah yang Dapat Disesuaikan

Dapatkan Harga Terbaik

Rambu Lalu Lintas Reflektif Aluminium 3KG yang Dapat Diputar

Dapatkan Harga Terbaik

8 Arah Rambu Lalu Lintas Reflektif yang Dapat Disesuaikan Tinggi 1-2 Meter

Dapatkan Harga Terbaik

3KG Aluminium 3M Film Reflektif Tanda Jalan Penyesuaian Manual

Dapatkan Harga Terbaik

Hubungi kami

86-573-84755380

wy@zjrmh.com

86-573-84755385

Hubungi sekarang

Deskripsi Produk

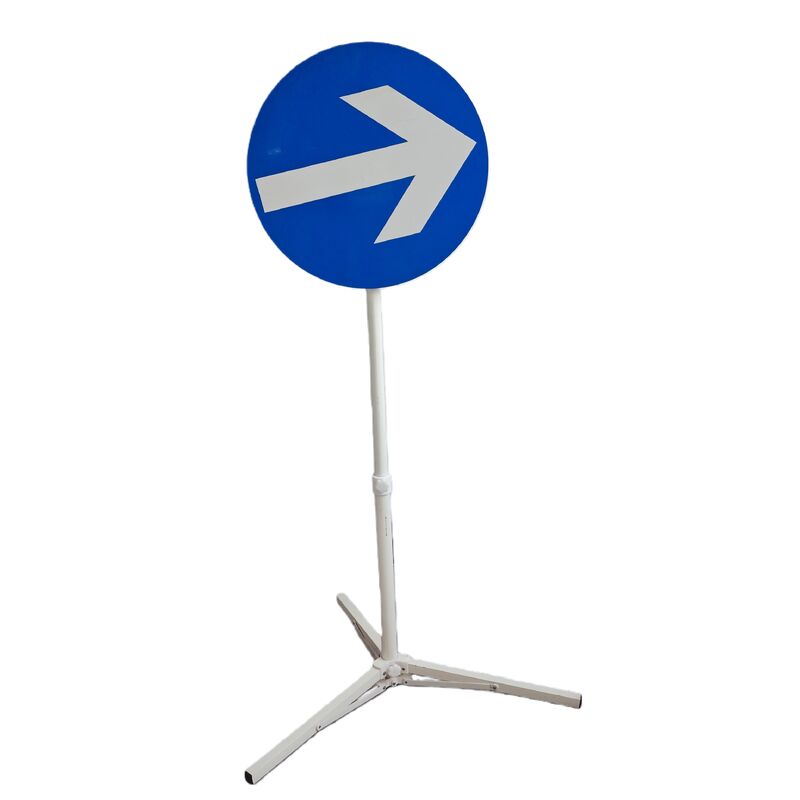

The Clock-Style Arrow Board is a manually rotatable, multi-directional reflective traffic sign designed for road construction, temporary traffic control, and intersection guidance. Its core value: one sign replaces multiple fixed-direction signs, flexibly adapting to changing road conditions.

Technical Specifications

Parameter	Value
Panel diameter	500 mm
Height range	1 - 2 m (adjustable)
Weight (excluding base)	3 kg
Number of directions	8
Panel material	Aluminum
Reflective film	3M engineering grade (upgradable)
Base types	Tripod (foldable) / Plastic water-filled
Color	Blue/Red + White

Working Principle

A manual turntable with 8 positioning holes is located behind the arrow board
The user rotates the panel by hand; each hole (45°) changes the arrow direction
No tools required – direction change can be done with bare hands

3. Structure Components

Component	Material/Specification	Description
Panel	Aluminum, 500mm diameter	Printed arrow pattern with 3M reflective film
Turntable	Metal/Engineering plastic	8-position holes, manual rotation
Support pole	Metal, 1-2m adjustable	With height adjustment knob
Base	Tripod or water-filled	Detachable, optional
Reflective film	3M engineering grade (upgradable)	Blue/Red background + White arrow

Functions

Function	Description
Direction indication	8 directions, full coverage
Height adjustment	1-2m stepless adjustment for different lanes or visibility
Nighttime reflection	3M reflective film, clearly visible from distance under headlights
Quick deployment	Detachable panel and bracket; one person can carry and install
Base options	Choose stability (tripod) or portability (water-filled) based on scenario

Usage Instructions

Assembly: Insert support pole into base, tighten knob; attach panel to pole top
Height adjustment: Loosen height knob, extend to desired height, tighten
Direction adjustment: Hold panel edge, rotate clockwise/counterclockwise to target direction; "click" sound indicates position locked
Storage: Detach panel from bracket; fold base or empty water; store in vehicle trunk

Application Scenarios

Scenario	Recommended Configuration	Reason
Short-term/temporary construction	Water-filled base + 1.5m + 3M film	Frequent moves; water-filled base is portable; 1.5m height sufficient
Long-term/nighttime operation	Tripod base + 2m + high-grade film	High stability required; 2m offers longer visibility; high-grade film for night safety
Multi-directional intersection guidance	Either base + 1.5-2m adjustable + 3M film	8-direction adjustment allows 1-2 boards to cover multiple directions

Difference from Ordinary Arrow Board

Aspect	Clock-Style Arrow Board	Ordinary Arrow Board
Number of directions	8	1-2
Direction change	Manual rotation, no panel replacement	Requires panel replacement or new purchase
Height adjustment	1-2m adjustable	Usually fixed
Base	Two options available	Single type
Storage	Detachable, foldable	Often integrated
Single board coverage	Can cover multiple directions	Covers only one direction

Frequently Asked Questions

Q1: What is this product?
A1: A 3M reflective film multidirectional adjustable reflective traffic sign.

Q2: Where is it made?
A2: China, with strict quality control.

Q3: How many directions can it point?
A3: 8 directions.

Q4: How do you adjust the direction?
A4: There is a manual turntable on the back. Just turn it by hand. No tools needed.

Q5: What brand of reflective film does it use?
A5: 3M.

Q6: Is it visible at night?
A6: Yes, it lights up brightly when car headlights hit it.

Q7: Where is it used?
A7: Road construction, traffic diversion, nighttime operations, intersection guidance.

Q8: What's the difference from a regular arrow sign?
A8: A regular sign has a fixed direction. This one can rotate to 8 directions without changing the sign.
